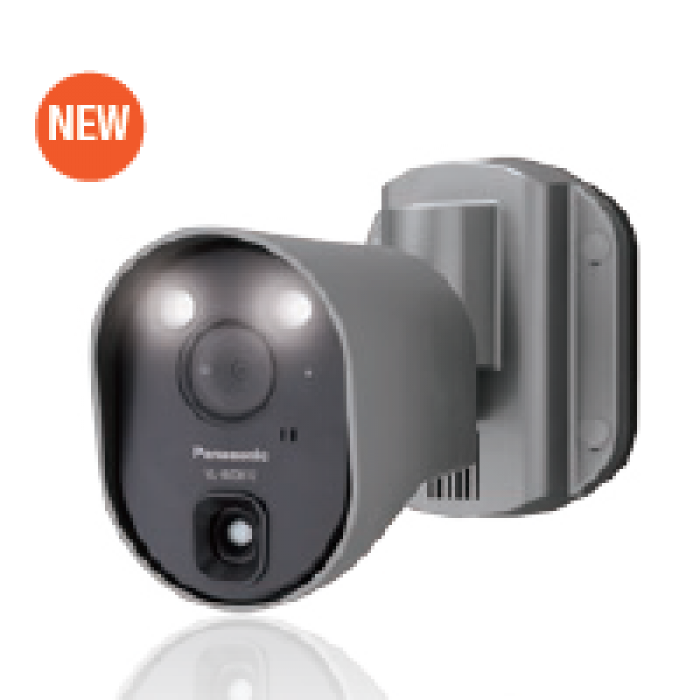

| Wireless Sensor Camera |
Power source |
Power supply unit (VL-PS241) |
| Power source |
24 V DC, 0.4 A |
| Power consumption |
During standby: approx. 1.5 W |
| Power consumption |
During operation: |
| Power consumption |
approx. 4.5 W (when the LED lights are not lit), |
| Power consumption |
approx. 8 W (when the LED lights are lit) |
| Dimensions(mm) (height x width x depth) |
Approx. 160 x 118 x 290 (mm) |
| Dimensions(mm) (height x width x depth) |
(when the camera is front facing and including the wall mount bracket) |
| Mass (weight) |
Approx. 960 g |
| Installation method |
Wall mount (wall mount bracket supplied) |
| Operating environment |
Ambient temperature: approx. -20? to +50? |
| Operating environment |
Relative humidity (non-condensing): up to 90 % |
| Transmitting range |
Approx. 100 m |
| Transmitting range |
(line-of-sight distance from the main monitor) |
| Frequency range |
1.88 GHz to 1.90 GHz |
| Image sensor |
0.3 M pixel CMOS |
| Minimum illuminance required |
1 lx |
| Minimum illuminance required |
* The minimum illuminance required when the camera’s [Brightness] setting is set to [+3]. |
| Focal length |
Fixed (0.4 m - infinity) |
| Angular field of view (camera angle) |
Horizontal: approx. 53°, |
| Angular field of view (camera angle) |
vertical: approx. 41° |
| Sensor detection method |
Pyroelectric infrared sensor (heat sensor) and |
| Sensor detection method |
motion detection |
| Sensor detection range |
? Heat sensor |
| Sensor detection range |
(when the surrounding temperature is approx. 20) |
| Sensor detection range |
Horizontal: approx. 63°, |
| Sensor detection range |
vertical: approx. 20°, |
| Sensor detection range |
detection range: approx.5 m |
| Sensor detection range |
? Motion detection sensor |
| Sensor detection range |
Horizontal: approx. 53°, vertical: approx. 41° |
| Lighting method |
2 white LED lights |
| Lighting method |
* Approx. 8.5 lx when 3 m in front of the camera, and approx. 4 lx when 3 m away and 20° to the left or right of the camera. |
| IP rating |
IP54 |
| IP rating |
* Water resistance is only assured if the camera is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken. Do not install the camera in areas directly exposed to water or rain. |
| Adjustable mounting angles |
Horizontal: ±90°, |
| Adjustable mounting angles |
vertical: facing forward - facing down approx. 60° |
| Adjustable mounting angles |
(adjustable when mounting) |
| Heat sensor adjustable angles |
Manually adjustable to 2 angles |
| Power supply unit |
Power source Input |
Input: 220-240 V AC, 0.2 A,50/60 Hz |
| Power source Input |
Output: 24 V DC, 0.6 A |
| Dimensions(mm) (height x width x depth) |
Approx. 104 x 100 x 54 (mm) |
| Dimensions(mm) (height x width x depth) |
(excluding protruding sections) |
| Mass (weight) |
Approx. 215 g |
| Operating environment |
Ambient temperature: approx. 0? to +40? |
| Operating environment |
Relative humidity (non-condensing): up to 90 % |
| Installation method |
- |
