• H.264 ,H.264+& Dual-stream video compression
• Support HD-TVI, IPC,AHD and analog cameras with
adaptive access
• Support Cloud storage(One Drive, Google Drive or Drop Box)
• Simultaneous HDMI/VGA output at up to 4K (3840 × 2160) resolution for HDMI output of TDV-7308/7316-H2
• Long transmission distance over coax cable
• Up to 4/8-ch synchronous playback at 1080p resolution
• playback at up to 256X speed.
Description

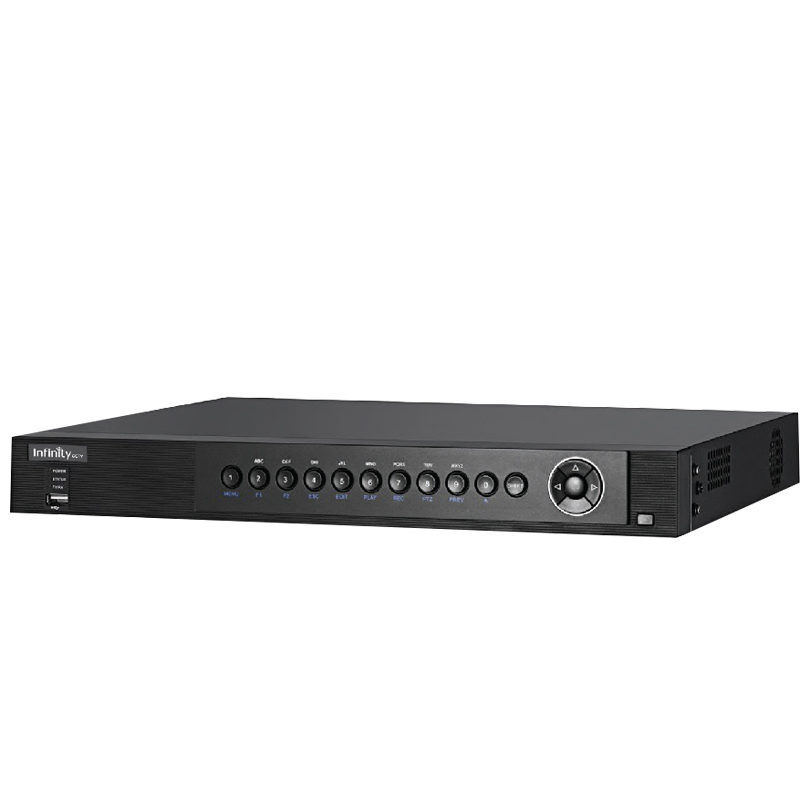

| Model | Infinity TDV-7308/7316-H2 | |
| Video/Audio Input | Video compression | H.264+/H.264 |
| Analog video input | 8-ch, 16-ch | |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | ||
| HDTVI input | 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz, 3 MP | |
| AHD input | 720p/25Hz, 720p/30Hz | |
| CVBS input | Support | |
| Audio compression | G.711u | |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Video/Audio Output | CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI/VGA output | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| Encoding resolution | 3 MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| Frame rate | Main stream: 3 MP@15fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| Sub-stream: WD1/4CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N) | ||
| Video bit rate | 32 Kbps to 10 Mbps | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Audio bit rate | 64 Kbps | |
| Dual stream | Support | |
| Stream type | Video, Video & Audio | |
| Synchronous playback | 8-ch | |
| Network Management | Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Hard Disk | SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk | |
| External interface | Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
| USB interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 | |
| Serial interface | RS-485 (half-duplex) | |
| Alarm in/out | 4/1 | |
| Power supply | 12 VDC | |
| General | Consumption (without HDD) ≤ | ≤ 20 W |
| Working temperature | -10 ºC to +55 ºC (14 ºF to 131 ºF) | |
| Working humidity | 10% to 90% | |
| Dimensions (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
| Weight (without HDD) ≤ | ≤ 2 kg (4.4 lb) | |
