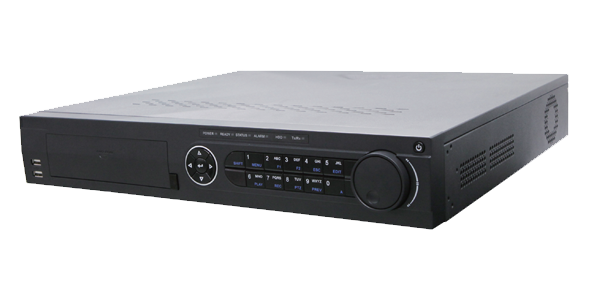

NVR IP CAMERA Hikvision 32CH DS-7732NI-E4

Deskripsi Produk

Video/Audio Input
IP video input: 32-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1k)
Network
Incoming bandwidth: 160Mbps
Outgoing bandwidth: 80Mbps
Remote connection: 128
Video/Audio Output
HDMI/VGA output: 1-ch, resolution:
1920 1080P /60Hz, 1600 1200 /60Hz, 1280 1024 /60Hz, 1280 720 /60Hz,
1024 768 /60Hz
Recording Resolution: 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate: Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Decoding
Live view / Playback: 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: 16-ch@4CIF, 12-ch@720P,
6-ch@1080P
Hard Disk
SATA: 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
Capacity: Up to 6TB capacity for each HDD
External Interface
Network Interface: 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
USB Interface: Front panel: 2 USB 2.0
Rear panel: 1 USB 3.0
Alarm In: 16-ch
Alarm Out: 4-ch
General
Power Supply: 100~240VAC
Consumption(without hard disk and POE): 20W
Working Temperature: -10 C ~ +55 C (+14 F~ + 131 F)
Working Humidity: 10 % ~ 90 %
Chassis: 19-inch rack-mounted 1.5U chassis
Dimensions: 445 390 70mm (17.5 15.3 2.8 inch)
