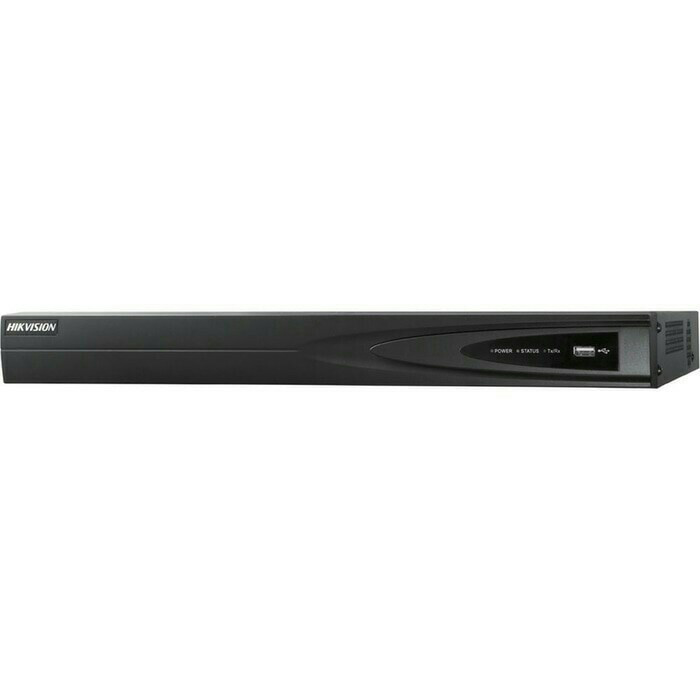

NVR HIKVISION DS-7616NI-E2 16ch

Video/Audio Input
IP video input: | 16-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1k)
Network
Incoming bandwidth: | 160Mbps
Outgoing bandwidth: | 80Mbps
Remote connection: | 128
Video/Audio Output
HDMI/VGA output: | 1-ch, resolution:
1920 1080P /60Hz, 1600 1200 /60Hz, 1280 1024 /60Hz, 1280 720 /60Hz,
1024 768 /60Hz
Recording Resolution: | 6 MP/5 MP/4 MP/3 MP 1080p/UXGA/720p/
VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate: | Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output: | 1-ch, RCA (Linear, 1k)
Synchronous Playback: | 16-ch
Decoding
Live view / Playback: | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: | 16-ch@4CIF, 12-ch@720P,
6-ch@1080P
Hard Disk
SATA: | 2 SATA interfaces for 2 HDDs
Capacity: | Up to 4TB for each disk
External Interface
Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: | 1 USB 2.0 and 1 USB 3.0
Alarm In: | 4-ch
Alarm Out: | 1-ch
POE
Interface: | 16 independent 100 Mbps PoE network interfaces
Max. Power: | 120W
Supported Standard: | AF and AT
General
Power Supply: | 100~240VAC
Consumption(without hard disk and POE): | 10W
Working Temperature: | -10 C ~ +55 C (+14 F~ + 131 F)
Working Humidity: | 10 % ~ 90 %
Chassis: | 19-inch rack-mounted 1U chassis
Dimensions: | 445 290 45mm (17.5 11.4 1.8 inch)
Weight(without HDD): | 1 Kg (2.2 lb)
