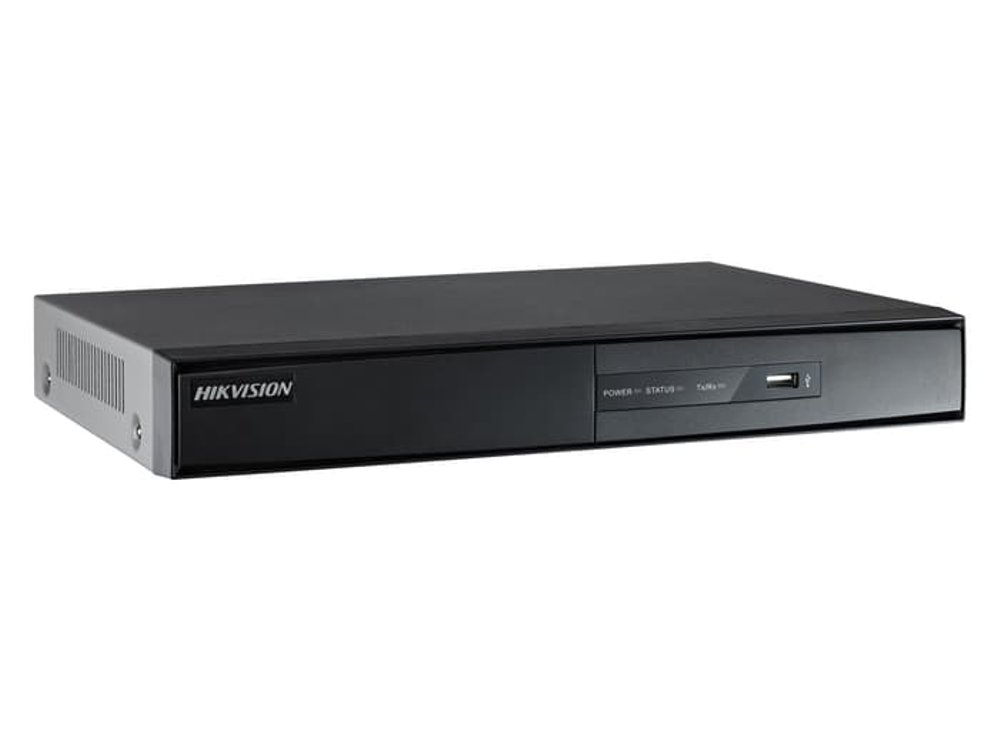

HIKVISION TURBO HD DVR DS 7204/7208/7216HGHI SH

Videopression H.264
Analog and HD-TVI video input 4-ch
Supported camera types 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
Audiopression G.711u
Audio input / Two-way audio in 1-ch, RCA (2.0 Vp-p, 1 K)
HDMI / VGA output 1920 1080 / 60 Hz,1280 1024 / 60 Hz, 1280 720 / 60 Hz, 1024 768 / 60 Hz
Encoding resolution Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rate Main stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate
Video bitrate 32 Kbps-6 Mbps
Audio output 1-ch, RCA (ar, 1K)
Audio bitrate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch
Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Remote connections 128
Network protocols TIP, PPPoE, DH, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
SATA 1 SATA interface
Capacity Up to 4 TB capacity for each disk
Network interface 1; 10M / 100M self-adaptive Ethernet interface
Serial interface 1; standard RS-485 serial interface, half-duplex
USB port 2 USB2.0
Power supply 12V DC
Consumption
(without hard disks) 15W
Working temperature -10 C ~+55 C (14 F ~ 131 F)
Working humidity 10% ~ 90%
Chassis 1U chassis
Dimensions (W D H) 315 242 45mm (12.4 9.5 1.8 inch)
Weight
(without hard disks) 1.5Kg (3.3lb)
