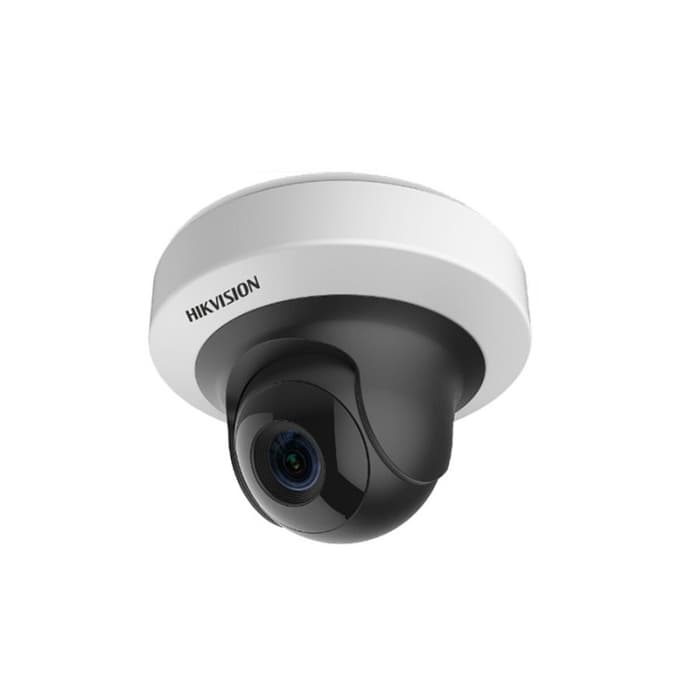

HIKVISION IP CAM PTZ DS-2CD2F20F-IS

Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination:0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter time:1/3 s to 1/10,000 s
Lens:2.8mm, 4mm, 6mm @ F2.0
Lens Mount:M12
Adjustment Range:Pan: -90 ~ 90, Tilt: 0 ~ 75
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.264/MJPEG/H.264+
H.264 code profile:Main Profile
Video bit rate:32Kbps~16Mbps
Max. Image Resolution:1920 x 1080
Frame Rate:50Hz: 25fps (1920 1080), 25fps (1280 960), 25fps (1280 720)
60Hz: 30fps (1920 1080), 30fps (1280 960), 30fps (1280 720)
Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:Yes, zone configurable
ROI:Support
Network
Network Storage:NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger:Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols:TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security:One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering, Anonymous access
System Compatibility:ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio:1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
Communication Interface:1 RJ45 10M / 100M Ethernet interface
Alarm:1x alarm I/O *only for S models
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:Yes
Wi-Fi Specification (-W)
Wireless Standards: IEEE802.11b, 802.11g, 802.11n
Frequency Range:2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: 20/40MHz Support
Modulation Mode:802.11b: CCK, QPSK, BPSK
Weight:500g (1.1lbs)
