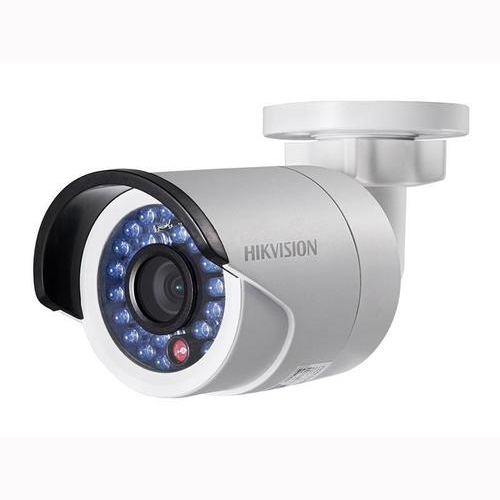

HIKVISION IP CAM DS-2CD2020-I

DS-2CD2020-I
2 Megapixel CMOS ICR Infrared Network Bullet Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter Speed 1/25 s to 1/100,000 s
Lens 4mm@ F2.0, Angle of view: 79
(6mm, 12mm optional)
Lens Mount M12
Day &Night IR cut filter with auto switch
Digital Noise
Reduction
3D DNR
Wide Dynamic Range Digital WDR
Video Compression H.264/ MJPEG
Video Bit Rate 32 Kbps 16 Mbps
Dual Stream Yes
Max. Resolution 1920 1080
Frame Rate 50Hz: 25fps(1920 1080), 25fps (1280 960), 25fps (1280 720)
60Hz: 30fps(1920 1080), 30fps (1280 960), 30fps (1280 720)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client
software or web browser
Backlight compensation Yes, zone optional
ROI Yes, up to 4 configurable areas
Network Storage NAS
Alarm Trigger Motion detection, Dynamic analysis, Tampering alarm
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security User Authentication, Watermark
Standard ONVIF, PSIA, CGI, ISAPI
Communication
Interface
1 RJ45 10M/100M Ethernet interface
Reset Button Yes
Operating Conditions
-30 C 60 C (-22 F 140 F)
Humidity 95% or less (non-condensing)
Power Supply 12 V DC 10% , PoE (802.3af)
Power Consumption Max. 7 W
Ingress Protection level IP66
IR Range 30 meters
Dimensions 60.476.9139.28 mm (2.4 3.0 5.5)
Weight 500g (1.1 lbs)
