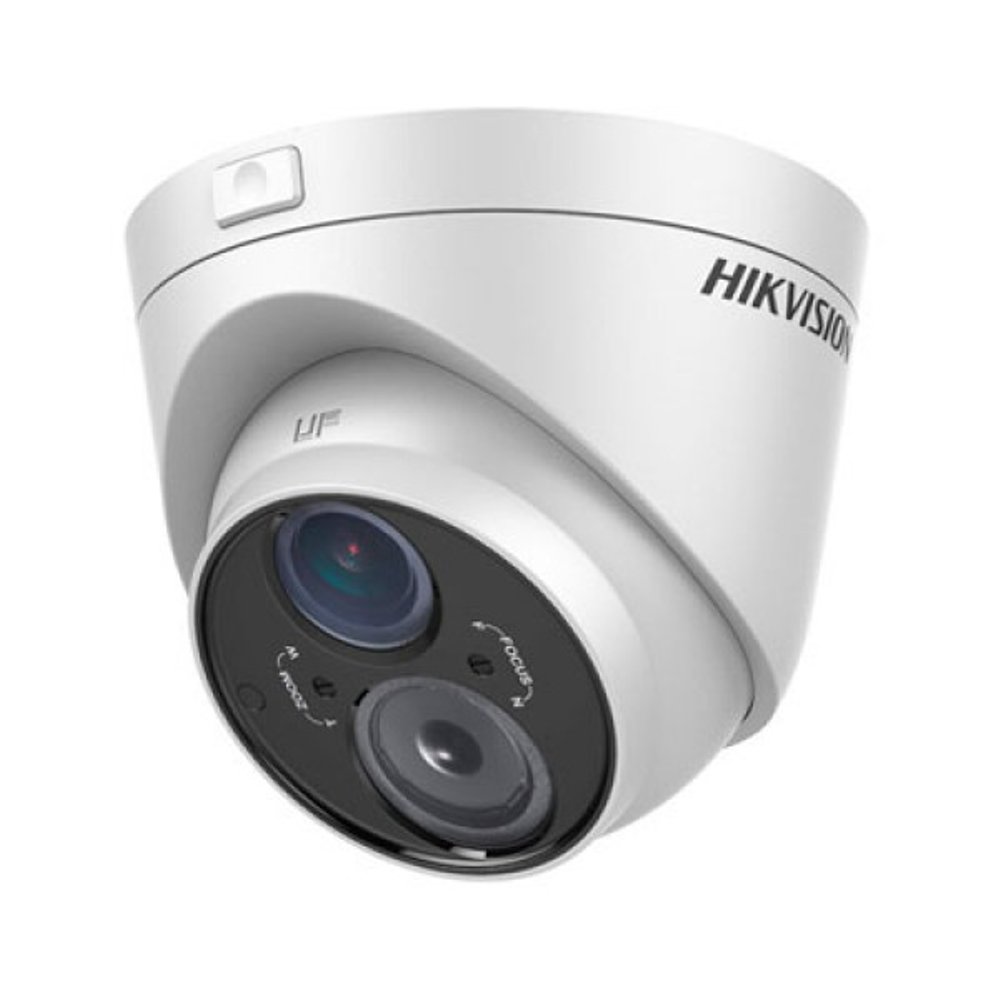

HIKVISION DS-2CE56C5T-VFIT3

Spesifikasi Camera
Image Sensor: | 1.27MP CMOS Image Sensor
Effective Pixels: | 1305(H)*977(V)
Min. Illumination: | 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR
0.0014 Lux @ (F1.4,AGC ON),0 Lux with IR
Lens: | 2.8-12mm @ F1.4
Angle of view: 92 - 29.3
Lens Mount: | 14
Adjustment Range: | Pan: 0 - 360, Tilt: 0 - 75, Rotation: 0 - 360
Day& Night: | IR cut filter with auto switch
Video Frame Rate: | 720p@25fps/720p@30fps
HD Video Output: | 1 Analog HD output
Synchronization: | Internal Synchronization
Video Output: | 1Vp-p Composite Output (75/BNC)
S/N Ratio: | More than 62 dB
Menu
D/N Mode: | Color / BW / SMART IR
Auto White Balance: | Auto / Manual
Private Mask: | On/Off, maximum 8 zones
Motion Detection: | On/Off, maximum 4 zones
AGC: | Support
Function: | Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom, Mirror,
Reset
General
Operating Conditions: | -30 C ~ 60 C (-22 F ~ 140 F)
Humidity 90% or less (non-condensing)
Power Supply: | 12 V DC10%
Power Consumption: | Max. 6.5W
Weather Proof: | IP66
IR Range: | Up to 50m
Dimension: | 130.5 93.2 mm (5.14 3. 67)
