1/3" Progressive Scan CMOS
HD1080P Video Output Resolution
Min. illumination 0.01 Lux @F1.2 AGC ON
2.8-12mm vari-vocal lens
Smart IR 40m
IP66 Weatherproof
Adopt HDTVI Technology
Description

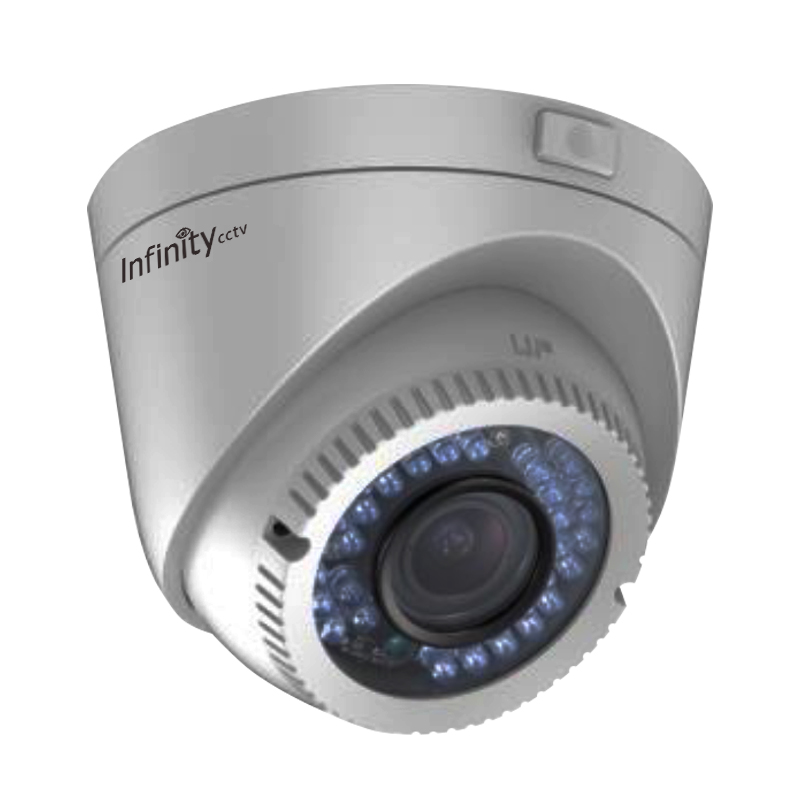

| Model | Infinity TC-58V | |
| Camera | Image Sensor | 2 MP CMOS Image Sensor |
| Signal System | PAL/NTSC | |
| Effective Pixels | 1930(H)*1088(V) | |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter speed | 1/25(1/30) s to 1/50,000 s | |
| Lens | 2.8 - 12 mm @ F1.4 | |
| Angle of view: 105.2° - 32.8° | ||
| Lens Mount | M12 | |
| Angle Adjustment | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° | |
| Day & Night | ICR | |
| Synchronization | Internal synchronization | |
| Video Output | 1 Turbo HD output | |
| S/N Ratio | More than 62dB | |
| General | Working Temperature/ Humidity | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | ||
| Power Supply |
|
|
| Power Consumption | Max. 3.5W | |
| Ingress Protection | IP66 | |
| IR Range | Up to 40 meters | |
| Dimensions | Φ130.54 × 102.4mm (Φ5.1” × 4”) | |
| Weight | 410 g (0.90 lb) | |
