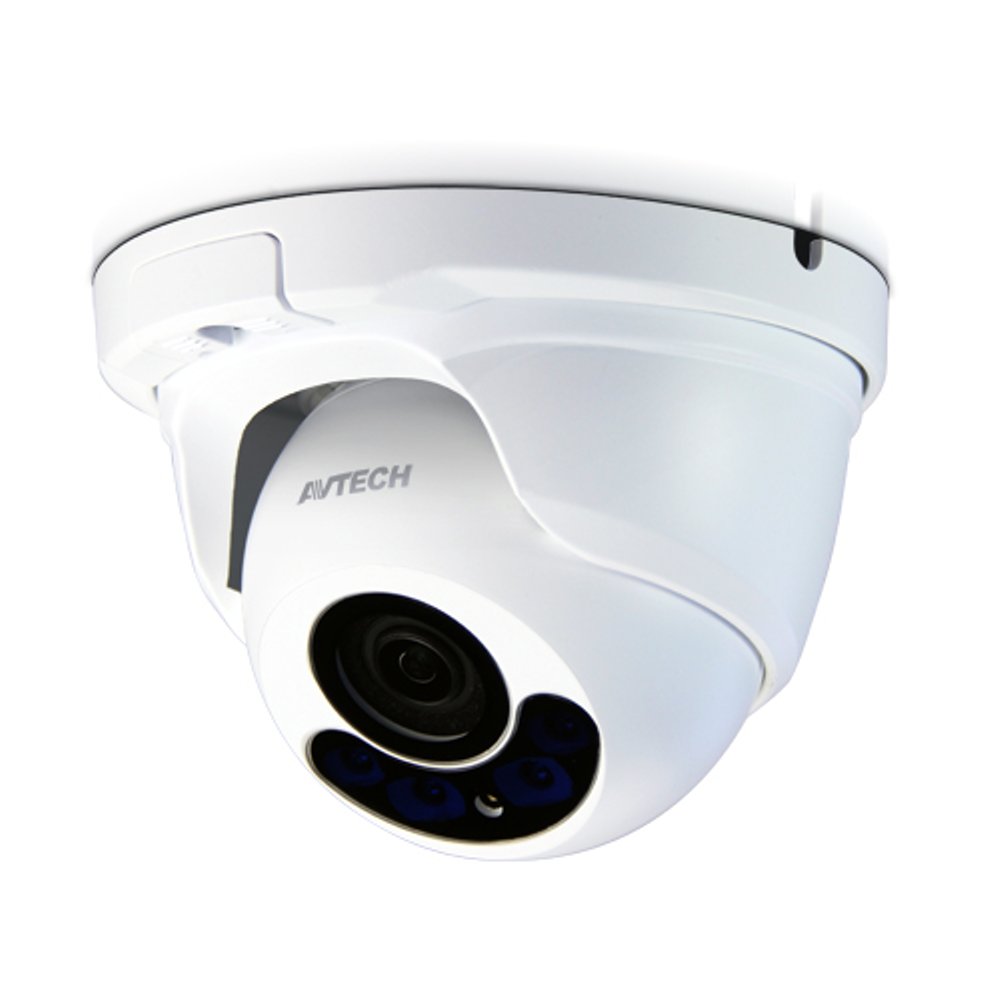

Features
1/2.7 CMOS sensor with 1080P video output
Low light sensitivity of 0.1 Lux / F1.6(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
EZUM series to support focus and camera parameters adjustment remotely from AVTECH HD CCTV DVR
Manual adjustment of the brightness of the IR LEDs
Day and night 24-hour surveillance with IR effective distance up to 50 meters
IP66 for weather-proof application
Camera parameters adjustable when used with AVTECH HD CCTV DVR
Specifications
Pick-up Element : 1/ 2.7 CMOS image sensor
Number of Pixels : 1930(H) x 1088(V)
Video Frame Rate : 1080P@30fps / 1080P@25fps
Min. Illumination : 0.1 Lux / F1.6(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
S/N Ratio : More than 48dB (AGC OFF)
Shutter Speed : 1/30 (1/25) sec ~ 1/720000 (1/600000) sec
Lens motorized : f2.8 ~ f8.0mm / F1.6 ~ 2.8
Lens Angle Wide: 104 (Horizontal) / 56 (Vertical) / 126 (Diagonal) Tele: 57 (Horizontal) / 32 (Vertical) / 65 (Diagonal)
IR LED : 4 units
IR Effective Distance : Up to 50 meters
IR Shift : YES
Day & Night Mode : YES
IRIS Mode : AES
White Balance : AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K
AGC : Adjustable
Sharpness : Adjustable
Flickerless : 50HZ / 60HZ / OFF
BLC : Adjustable
IR Brightness Adjustment : YES
IP Rating : IP66
Operating Temperature : -25 ~ 50
Operating Humidity : 90% or less relative humidity
Power Source (10%) : DC12V / 1A
Current Consumption (10%) : 220mA (IR LED OFF) / 900mA (IR LED ON)
Net Weight (kg) : 0.75 (berat unit bukan berat packing)
